Interactive Console

Highlights

The interactive console provides a perfect complement to the PyDev environment. It allows interactive editing, running and debugging of your Python project. Some of the highlights are:

Starting the Interactive Console

To use it, do Ctrl+Alt+Enter (while in the PyDev editor) to:

  • Open a console if there's no open console
  • Make an runfile of the current editor in the console (if no text is selected), so that its symbols are available for further experimentation.

and F2 to:

  • Send the current line(s) to the console (fixing indentation and moving to next line).

Alternatively, it can be initialized from the console view from the dropdown for a new console (rightmost corner icon in the console view)

images/console/start_console.png

Choosing the Console Type

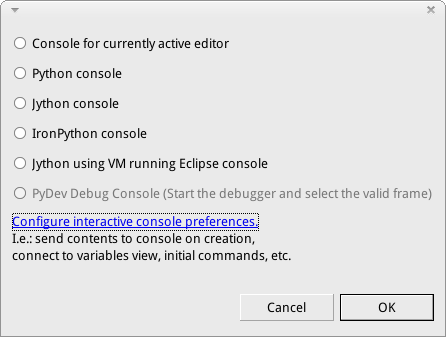

Choose the console type - this will determine the PYTHONPATH and the interpreter that will be used in the console.

images/console/choose_console.png
  • Console for currently active editor

    only the PYTHONPATH for the current editor (retrieved from the related project).

    If a PyDev editor is not active this option will not be available. In it's place will be an error message about why the option is not available.

  • Python console

    PYTHONPATH containing all the paths from Python (for all the projects in the workspace).

    If no Python interpreters are configured this option will not be available. In it's place will be an error message about why the option is not available.

  • Jython console

    PYTHONPATH containing all the paths from Jython (for all the projects in the workspace).

    If no Jython interpreters are configured this option will not be available. In it's place will be an error message about why the option is not available.

  • IronPython console

    PYTHONPATH containing all the paths from IronPython (for all the projects in the workspace).

    If no IronPython interpreters are configured this option will not be available. In it's place will be an error message about why the option is not available.

  • Jython using VM running Eclipse console

    Creates a Jython console using the running Eclipse environment (can potentially halt Eclipse depending on what's done).

  • PyDev Debug Console

    Creates a Python debug console associated with the frame selected in the debug view.

    If no PyDev frames are selected in the Debug view this option will not be available. In it's place will be an error message about why the option is not available.

    It is also possible to open the PyDev Debug Console by right-clicking on a frame in the Debug View and choosing "Debug Console" from the "PyDev" menu.

Command Line Editing and History Navigation

PyDev features a rich set of command completion, editing and history management.

Code Completion

Code completion can be activated with Ctrl+Space (or the default keybinding in the target installation). All the features available for code completion in the editor are also available in the console (and they're controlled from the same place).

images/console/code_completion.png

Ctrl+1 can be used to make an assign to a variable

images/console/ctrl_1.png

Code Editing

  • Esc: clears current line
  • Paste added directly to the command line
  • Cut will only cut from the command line
  • Copy does not get the prompt chars
  • Home goes to: first text char / prompt end / line start (and cycles again)
  • Cursor automatically moved to command line on key events

Documentation Hovers

Hovering over some element in the console shows docstrings (or other suitable description if not available)

images/console/hover.png

History

Up / Down Arrows cycles through the history (and uses the current text to match for the start of the history command)

Page up shows the history (multiple lines may be selected to be re-executed and the field can be used to filter suitable lines - with wildcards)

images/console/page_up.png

And More!

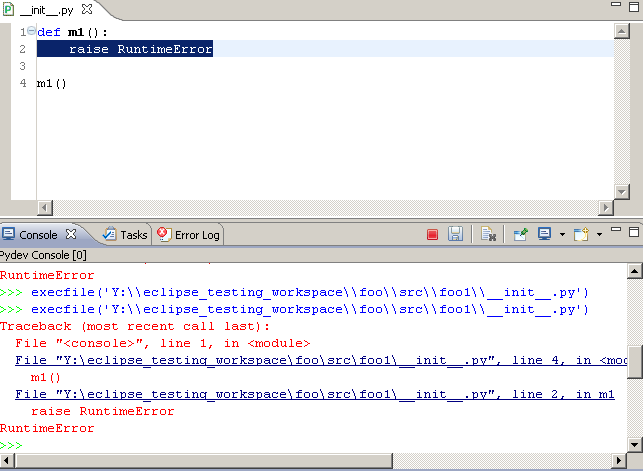

Hyperlinks are linked in tracebacks

images/console/hyperlink.png

The color, initial commands and vm args for jython can be configured in window > preferences > PyDev > interactive console

images/console/prefs.png

Multiple views of the same console can be created

Full Debug Support in Interactive Console

Starting with release 3.0 of PyDev, the interactive console in PyDev can be connected to the full debug infrastructure provided by PyDev. In addition to the new features available since PyDev 2.5.0 of connecting Variables and Expressions view, now breakpoints, single-stepping, etc is all available within the Console.

To enable that feature, go to window > preferences > PyDev > Interactive Console and check 'Connect console to Debug Session?'.

images/interactiveconsole/interactive_console_variables_view_preference.png

With that setting in place, when a new interactive console is created and the debug perspective is shown, it's possible to see the variables available in the console through the variables view and even add expressions to be resolved in the expressions view. In addition, breakpoints set in code are hit and code can be stepped through.

Running a Python File with a Breakpoint

When a Python file is run (any method, demonstrated here with runfile) any breakpoints will suspend execution.

images/interactiveconsole/breakpoint_on_runfile.png

Running Code with a Breakpoint

If any code is run that has a breakpoint, as for example shown here by having defined a function called "my_sample_function" earlier, code will suspend execution as expected.

images/interactiveconsole/breakpoint_on_running_function.png

Examining Variables with an Active Prompt

When code is being run that is typed by the user in the prompt, the "Interactive Console" thread shows as executing, when the prompt is available, the contents of the namespace of the interactive console is available in the Variables and Expressions view.

images/interactiveconsole/view_when_in_console.png

User Module Deleter

The user module deleter, a feature activated by using "runfile" to run scripts instead of "execfile", forces all user modules imported modules to be forcefully removed so that a subsequent import of the deleted module is loaded from disk again. Ctrl+Alt+Enter uses runfile and therefore the UMD if it is enabled in the preferences.

To access the UMD preference, go to window > preferences > PyDev > Interactive Console > User Module Deleter (UMD).

images/console/umd_prefs.png

The first time runfile is called it collects a list of all the modules already loaded and does not attempt to reload those modules. In addition, built-in modules, C modules and modules listed in the Excluded Modules preference list will not be reloaded.

The UMD achieves the reload by deleting the module from sys.modules so that the subsequent import reloads it fully. It is important to remember that any references to items inside an imported module will not be updated.

Example of User Module Deleter in Action

In step 1 we have a module called myothermodule with a function that returns 1. The program runme.py is being executed showing that myfunc does indeed return 1.

images/console/umd_step1.png

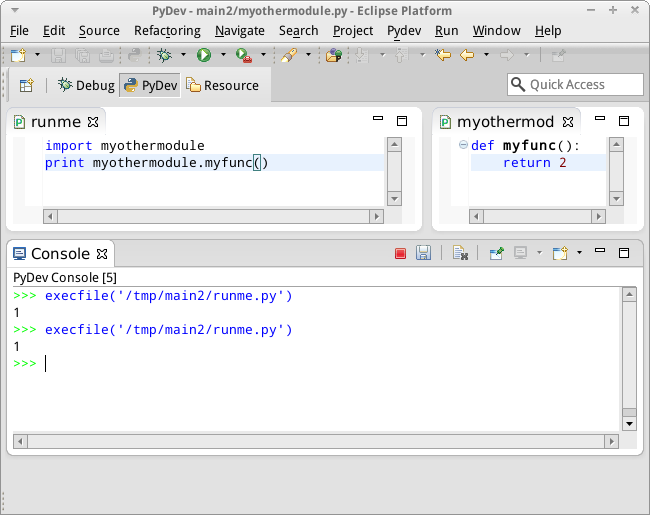

In step 2 we have updated myfunc to return 2, but we have used execfile to execute runme.py. This shows that myfunc has indeed returned 1.

images/console/umd_step2.png

In step 3 we have use runfile to execute runme.py, the UMD shows that myothermodule has been deleted and we can see that myfunc now returns 2.

images/console/umd_step3.png

In this example, at some point prior to running step 1, we did a runfile to preload the list of modules that should not be deleted.

GUI Event Loop Integration

Optionally, when running the interactive console, the interactive console can run the GUI event loop while idle. This allows the launching of interactive GUIs while using the console and is of particular benefit when using matplotlib, mayavi or similar.

The Event loop that is enabled can be selected in window > preferences > PyDev > Interactive Console and selecting the desired item in "Enable GUI event loop integration?".

In addition, the GUI can be set if using IPython with the %gui IPython magic function. e.g. "%gui wx" enables wxPython integration.

images/console/gui_prefs.png

For example, with the wxPython event loop on we can do the following with Mayavi. In this example, the console stays fully interactive and while it is idle, the wxPython events are handled, making the Mayavi scene interactive too. (Example function from Mayavi documentation)

images/console/gui_mayavi.png

IPython Integration

When available, IPython is used as the backend for the Interactive Console (as opposed to Python's InteractiveConsole). When in use, all of the wonderful features of IPython are available within PyDev. For example, %edit will open up the file in the fully featured PyDev editor, and %gui provides command line access to GUI Event Loop Integration.

Note: From PyDev 2.2.2 onwards, if IPython is found in the PYTHONPATH, PyDev will use it as the backend for the console. Supported versions are releases 0.10 to 1.1.0, however it is expected that PyDev should work with any newer releases too, please file a bug in the tracker if any issues are encountered.

Always Getting Better

The Interactive Console is one of the areas benefiting from new contributions so in upcoming releases expect many more features and improvements.

For example:

  • Allow stdout and stderr to be displayed from the console asynchronously. This will resolve the current limitiation that at the moment stdout and stderr is only "collected" from the Python process synchronously with displaying the prompt.
